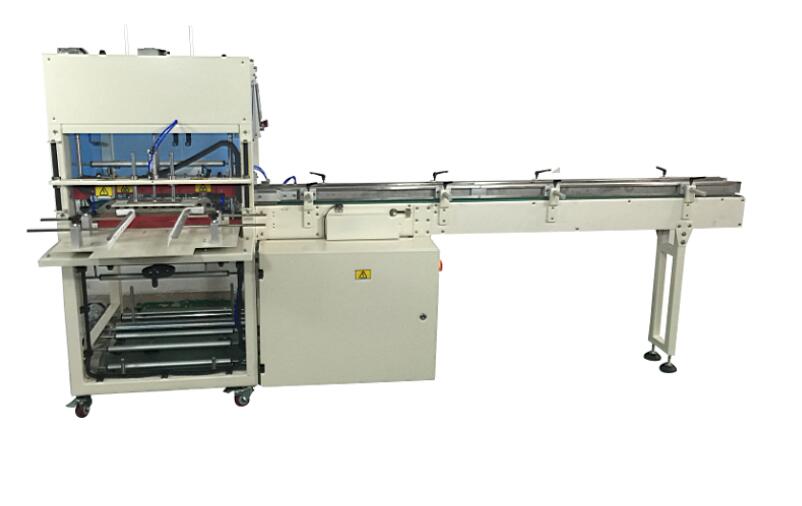

Sleeve type automatic sealing machine ZF-X450
Product Characteristics：
Touch screen design, convenient operation.
Precise and durability design, strong body structure.
The operation is convenient and easy to adjust, even for unprofessional workers.
Bulk packaging to lower the packing cost.
A very special designed sealing knife. The sealing line is very firm and neat and can used for PVC, POF and PE film meanwhile.
The conveying length can be customized according to production needs.
|
型号Model No. |
ZF-X450 |
ZF-XZ650 |
ZF-X1800 |
|
机器尺寸Machine Size (mm)L x W x H |
3125x1085 x 1490 |
2025x 1085 x 1490 |
2700x1800 x 2030 |
|
包裝物尺寸范围Packing material size L x W x H (mm) |
350×(40-130)×(40-130) |
550×(40-130)×(40-130) |
1200 x 350 x 350 |
|
电压Voltage |
220V / 1PH |
220V / 1PH |
220V / 1PH |
|
耗电Power consumption (Kw) |
2.5 KW |
3 KW |
5 KW |
|
包装能力/分钟 Packing capacity/min. |
20包 20 packs |
20包 20 packs |
10包 10 packs |
|
气缸耗气量Cylinder air consumption |
65psi, 6kg/sq.cm |
65psi, 6kg/sq.cm |
65psi, 8kg/sq.cm |
